Dialogs

Dialogs are a great way to get the user to make a decision or enter some information. They are also a great way to display information to the user. A set of pre-built dialogs are provided by UraniumUI such as asking multiple or single selection, confirmation and text input. UraniumUI provides an abstraction layer for dialogs with IDialogService. UraniumUI has 2 different popups implementations which are Community Toolkit and Mopups.

You should pick one of them and add it to your project. UraniumUI will use the popup implementation that you added to your project. If you don't add any popup implementation, UraniumUI will use Modal pages instead of popups.

Available packages

UraniumUI.Dialogs.CommunityToolkit
UraniumUI.Dialogs.Mopups

CommunityToolkit

Install UraniumUI.Dialogs.CommunityToolkit

dotnet add package UraniumUI.Dialogs.CommunityToolkit

Add required services in MauiProgram.cs

builder.Services.AddCommunityToolkitDialogs();

Mopups

Install UraniumUI.Dialogs.Mopups

dotnet add package UraniumUI.Dialogs.Mopups

Configure Mopups in MauiProgram.cs

builder
    .UseMauiApp<App>()
    .UseUraniumUI()
    .UseUraniumUIMaterial()
    .ConfigureMopups() // 👈 Add this line
    // ...

Add required services in MauiProgram.cs
```
builder.Services.AddMopupsDialogs();
```
C#

Types

There are 4 types of dialogs in UraniumUI package. They are: CheckBox Prompt, RadioButton Prompt, Confirmation and Text Prompt. They are implemented as extension methods and IDialogService implementation. You can use them as extension method for any Page or you can use then view injecting IDialogService to your class.

Extension Method

public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
    }

    private async void Button_Clicked(object sender, EventArgs e)
    {
        var result = await this.DisplayCheckBoxPromptAsync("Title", new []{ "Option 1", "Option 2", "Option 3"});
    }
}

IDialogService

public partial class MainPage : ContentPage
{
    public IDialogService DialogService { get; }
    public MainPage(IDialogService dialogService)
    {
        InitializeComponent();
        DialogService = dialogService;
    }

    private async void Button_Clicked(object sender, EventArgs e)
    {
        var result = await DialogService.DisplayCheckBoxPromptAsync("Title", new []{ "Option 1", "Option 2", "Option 3"});
    }
}

Injecting IDialogService is highly recommended. It'll make your code more testable and makes dialogs libray easily swappable.

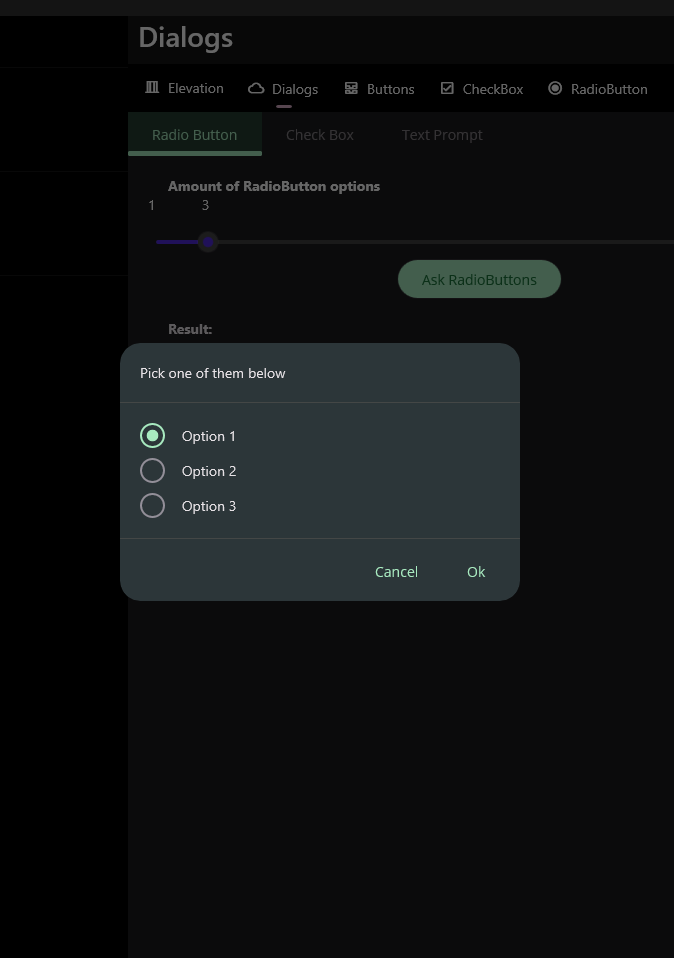

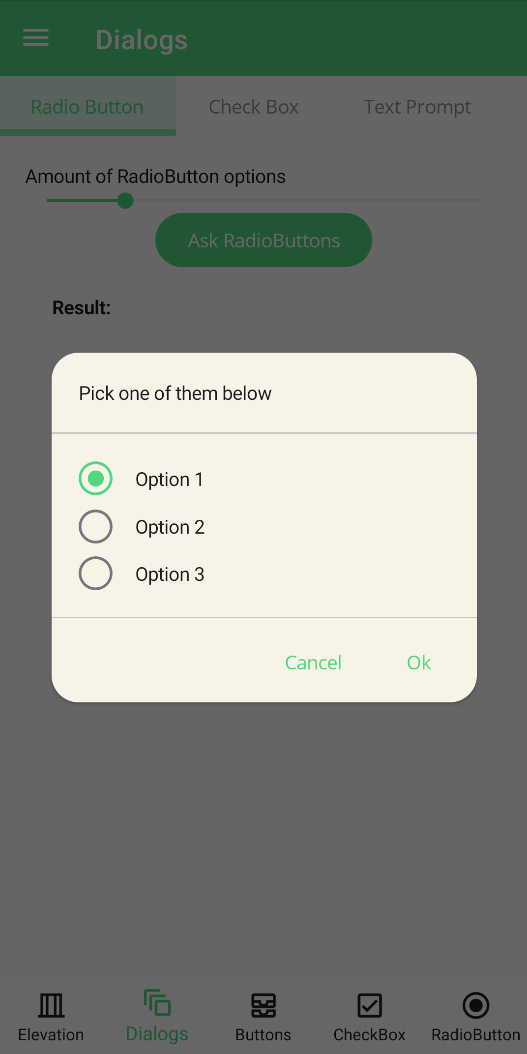

RadioButton Prompt

RadioButton prompt can be used to get a single selection input from user. It returns the selected option. It can be used with strings or objects. If you use objects, you can use DisplayMember parameter to specify the property of the object to be displayed or your object should override ToString() method.

Usage

The easiest way to use RadioButton prompt is to pass a string array to it. It will return the selected option as a string.

private async void Button_Clicked(object sender, EventArgs e)
{
    var result = await this.DisplayRadioButtonPromptAsync(
            "Pick some of them below",
            new [] {"Option 1", "Option 2", "Option 3"});
}

Light	Dark

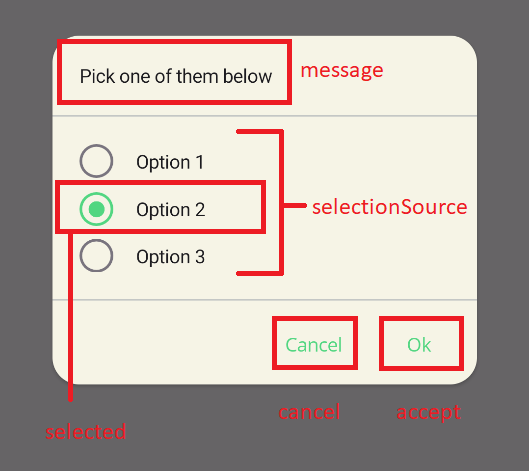

Parameters

DisplayRadioButtonPromptAsync method has 6 parameters. They are:

message: Message of the dialog. It'll be rendered top of the dialog.
selectionSource: Selection source of the dialog. It can be a string collection or an object collection. If you use objects, you can use displayMember parameter to specify the property of the object to be displayed or your object should override ToString() method.
selected: Selected item of the dialog. It'll be automatically selected when dialog is shown.
accept: Accept button text of the dialog. It'll be rendered as the accept button text.
cancel: Cancel button text of the dialog. It'll be rendered as the cancel button text.
displayMember: Display member of the object. It'll be used to specify the property of the object to be displayed or your object should override ToString() method.

private async void Button_Clicked(object sender, EventArgs e)
{
    var options = new List<MyOption>()
    {
        new MyOption() { Name = "Option 1", Description = "Description 1" },
        new MyOption() { Name = "Option 2", Description = "Description 2" },
        new MyOption() { Name = "Option 3", Description = "Description 3" },
    };
    var result = await this.DisplayRadioButtonPromptAsync(
            "Pick some of them below",
            options,
            options[1],
            "OK",
            "Cancel",
            "Name");

    await this.DisplayAlert("Result", result.Name, "OK");
}

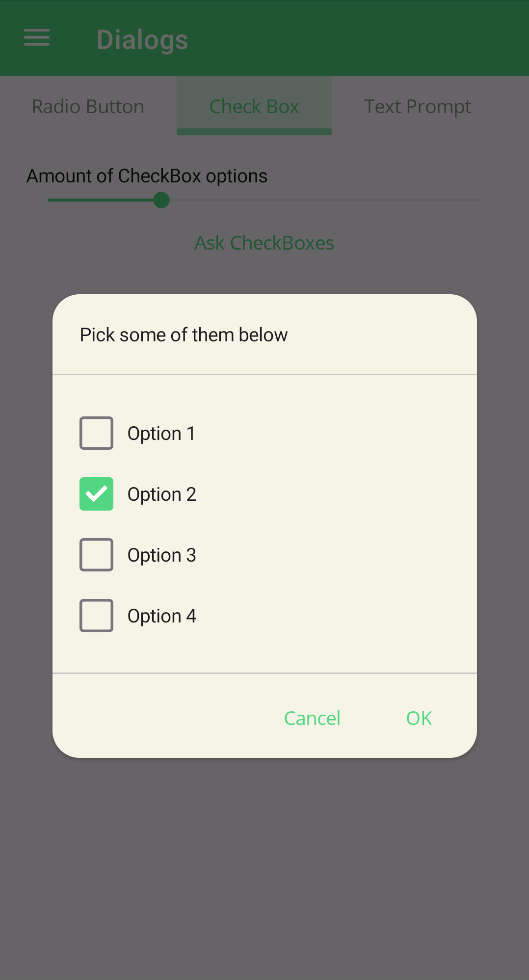

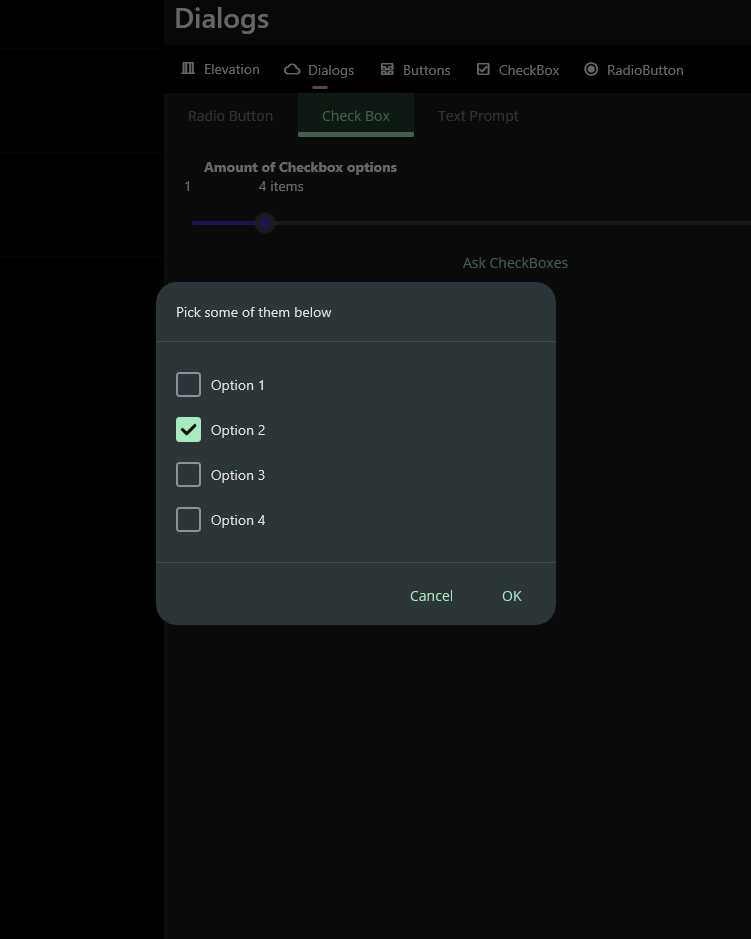

CheckBox Prompt

CheckBox prompt can be used to get a multiple selection input from user. It returns the selected options. It can be used with strings or objects. If you use objects, you can use DisplayMember parameter to specify the property of the object to be displayed or your object should override ToString() method.

Light	Dark

Usage

The easiest way to use CheckBox prompt is to pass a string array to it. It will return the selected options as a string array.

private async void Button_Clicked(object sender, EventArgs e)
{
    var result = await this..DisplayCheckBoxPromptAsync(
            "Pick some of them below",
            new [] {"Option 1", "Option 2", "Option 3", "Option 4",});
}

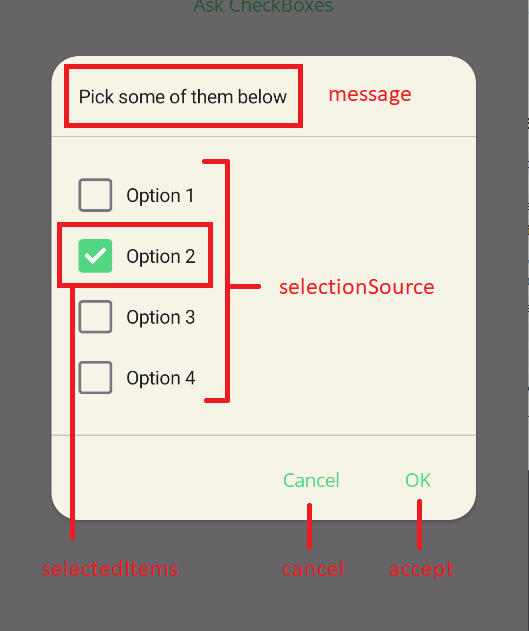

Parameters

DisplayCheckBoxPromptAsync method has 6 parameters. They are:

message: Message of the dialog. It'll be rendered top of the dialog.
selectionSource: Selection source of the dialog. It can be a string collection or an object collection. If you use objects, you can use displayMember parameter to specify the property of the object to be displayed or your object should override ToString() method.
selectedItems: Selected items of the dialog. They'll be automatically selected when dialog is shown.
accept: Accept button text of the dialog. It'll be rendered as the accept button text.
cancel: Cancel button text of the dialog. It'll be rendered as the cancel button text.
displayMember: Display member of the object. It'll be used to specify the property of the object to be displayed or your object should override ToString() method.

private async void Button_Clicked(object sender, EventArgs e)
{
    var options = new List<MyOption>()
    {
        new MyOption() { Name = "Option 1", Description = "Description 1" },
        new MyOption() { Name = "Option 2", Description = "Description 2" },
        new MyOption() { Name = "Option 3", Description = "Description 3" },
        new MyOption() { Name = "Option 3", Description = "Description 4" },
    };

    var result = await this.DisplayCheckBoxPromptAsync(
            "Pick some of them below",
            options,
            new [] { options[1] },
            "OK",
            "Cancel",
            "Name");

    await this.DisplayAlert("Result", string.Join(", ", result.Select(x => x.Name)), "OK");
}

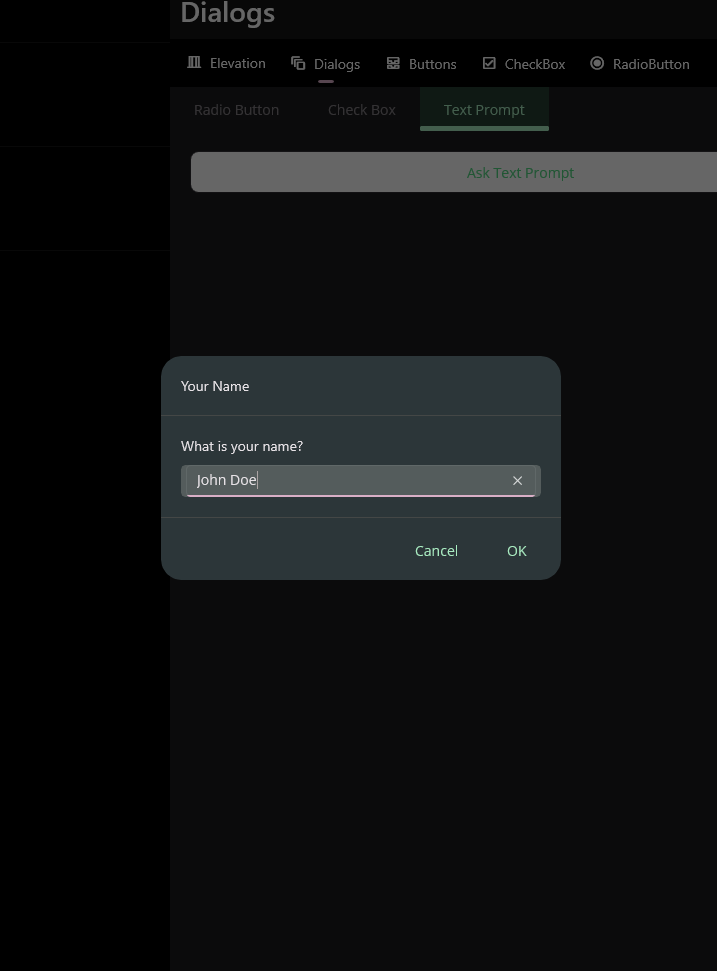

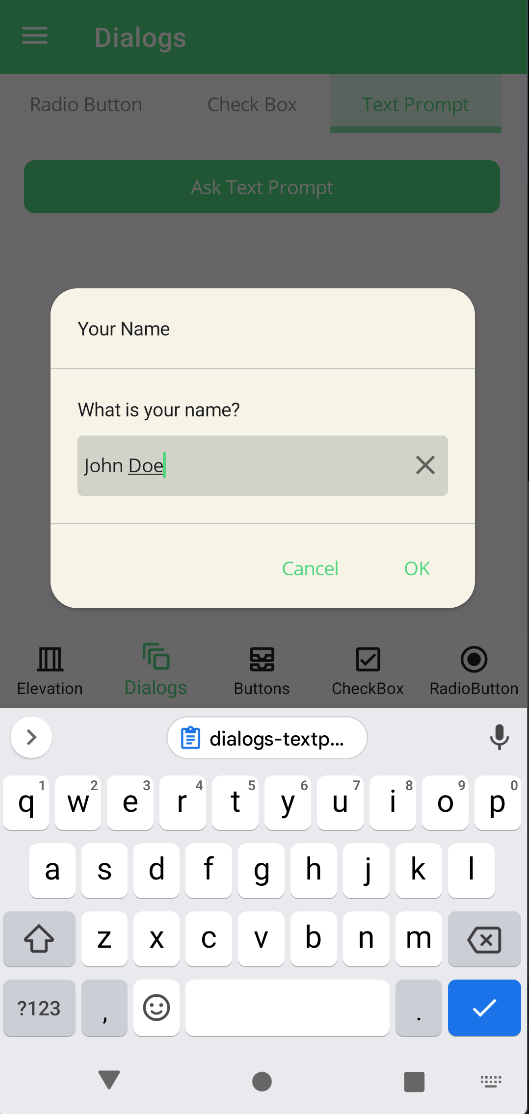

Text Prompt

Text prompt can be used to get a text input from user. It returns the entered text. All parameters are same with MAUI default DisplayPromptAsync method.

Light	Dark

private async void Button_Clicked(object sender, EventArgs e)
{
    var result = await this.DisplayTextPromptAsync("Your Name", "What is your name?", placeholder: "Uvuvwevwevwe...Osas");

    await DisplayAlert("Result:", result, "OK");
}

Progress

Progress dialog can be used to show a progress dialog to the user. There are 2 types of progress dialogs in UraniumUI. They are blocking and cancellable. Blocking progress dialog will block the UI until it's closed. Cancellable progress dialog will have a cancel button to allow user to cancel the operation. It returns an IDisposable and it'll be visible until you dispose it. You can use it with using statement to show a progress dialog.

private async void Button_Clicked(object sender, EventArgs e)
{
    using (await DialogService.DisplayProgressAsync("Loading", "Work in progress, please wait..."))
    {
        // Indicate a long running operation
        await Task.Delay(5000);
    }
}

Light	Dark

private async void Button_Clicked(object sender, EventArgs e)
{
    using (await DialogService.DisplayCancellableProgressAsync("Loading", "Work in progress, please wait...", "Cancel"))
    {
        // Indicate a long running operation
        await Task.Delay(5000);
    }
}

Light	Dark

Handling Cancellation

You can handle the cancellation of the progress dialog by checking the IsCancellationRequested property of the CancellationToken parameter of the DisplayCancellableProgressAsync method.

You can handle with registering an action to the CancellationToken.

private async void Button_Clicked(object sender, EventArgs e)
{
    var cts = new CancellationTokenSource();
    cts.Token.Register(() =>
    {
        // Handle cancellation
        Console.WriteLine("Progress dialog cancelled");
    });

    using (var progress = await DialogService.DisplayCancellableProgressAsync(
        "Loading", "Work in progress, please wait...", "Cancel", cts))
    {
        // Indicate a long running operation
        await Task.Delay(5000);
    }

You can handle at the end of the operation by checking the IsCancellationRequested property of the CancellationToken.

private async void Button_Clicked(object sender, EventArgs e)
{
    var cts = new CancellationTokenSource();

    using (var progress = await DialogService.DisplayCancellableProgressAsync(
        "Loading", "Work in progress, please wait...", "Cancel", cts))
    {
        // Indicate a long running operation
        await Task.Delay(5000);
    }

    if (cts.IsCancellationRequested)
    {
        // Handle cancellation
        Console.WriteLine("Progress dialog cancelled");
    }
    else
    {
        // Handle completion
        Console.WriteLine("Progress dialog completed");
    }

You can even cancel the long running Task operation when user cancels the operation:

private async void Button_Clicked(object sender, EventArgs e)
{
    var cts = new CancellationTokenSource();

    using (var progress = await DialogService.DisplayCancellableProgressAsync(
        "Loading", "Work in progress, please wait...", "Cancel", cts))
    {
        try
        {
            // Indicate a long running operation
            await Task.Delay(5000, cts.Token);
        }
        catch (TaskCanceledException)
        {
            // Handle cancellation
            Console.WriteLine("Progress dialog cancelled");
        }
    }
